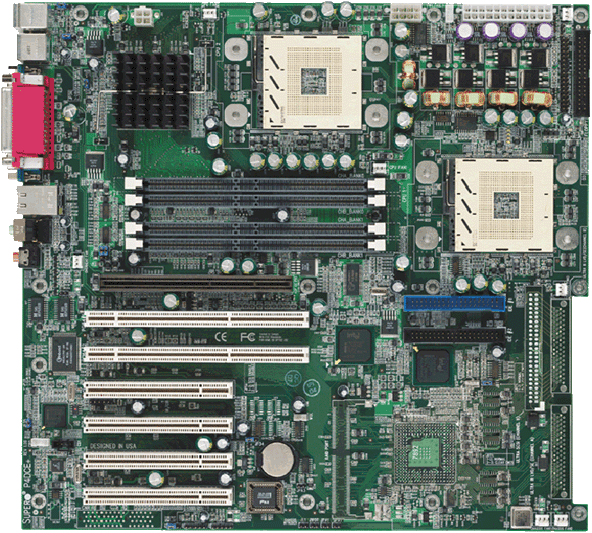

SUPER P4DCE+ (MBD-P4DCE-O+)

Target Segment High-end workstation, server, and internet application

Form Factor Extended ATX

Size: 12" x 13" (W x H)

Processor Support Dual Intel 603-pin Xeon processors up to 2.40GHz

Chipset Intel 860 chipset

Front Side Bus 400 MHz

Memory Dual Channel 600/800 MHz RDRAM with Transfer Rate up to 3.2 GB/s

Four 184-pin RIMMs for 600/800 MHz RDRAM up to 2 GB

Two Rambus Inline memory modules of the same memory size is the minimum requirement.

(Memory recommendation list)

I/O Expansion 2 64-bit 66MHz PCI

4 32-bit 33MHz PCI

1 4xAGP Pro 1.5V

Onboard Devices Dual EIDE ports support Ultra DMA 100MB/s of Burst data transfer rate, supports UDMA Mode 5, PIO Mode 4 and ATAPI

VRD (Voltage Regulator Down)

AC97' Audio

Intel 82559 LAN controller

PC hardware health monitoring

1 Floppy

2 Fast UART 16550 serial ports

1 ECP/EEP parallel port

1 Infrared header

Up to 4 USB ports

PS/2 keyboard and mouse ports

Other Feature ACPI/APM power management

Internal/external modem ring-on

Control of power-on mode for recovery from AC power loss

One WOL (Wake-On-LAN) connector

One chassis intrusion connector

PC Health Monitoring Monitoring the voltages of the CPU core and the status of system power supply (+3.3V, + 5V, + 12V)

CPU/chassis temperature monitoring

CPU fan auto-off in sleep mode

CPU overheat LED header (front panel)

chassis intrusion detection (through LDCM)

Support for system management software (LDCM)

Special Feature Suspend to RAM (STR): All tasks are stored in RAM and can be resumed within 10 seconds from the minimum power consuming suspend mode.

Wake-on-LAN allows for remote network management and configuration of the PC, even in off-hours when the PC is turned off. This reduces the complexity of managing a network.

Onboard 3-phase switching power regulator supports CPU core voltages from 1.1-1.85 volts

4 tachometer fan connectors (for CPU, chassis, and thermal control fans)

Keyboard wake-up from Soft-off

CPU frequency settings - changeable in BIOS setup

Connector for LED overheat indicator

Overheat backup fan connector for CPU protection

BIOS Feature Supports ACPI (Advanced Configuration and Power Interface) and APM (Advanced Power Management)

Slow blinking LED for Sleep State indicator

Main switch override mechanism. Power-up mode control upon recovery from AC power loss

PC Health Monitoring protects your system from problems even before they occur.

DMI support

ACPI/APM power management

RTC (Real-Time Clock) wakeup

External modem remote ring-on when system is in Soft-Off state

BIOS rescue hot keys for rescuing BIOS chip from flash failure

Hardware BIOS virus protection

4Mb Flash ROM

Chassis Compatibility Extended ATX Chassis

Chassis Guide

To ensure system stability, a 400W (minimum) ATX12V power supply (with both 4-pin and 8-pin +12v power connector) is required.

Please check Support for more details

Standard Retail Package One SUPER P4DCE+ mainboard

CPU heatsink retention and clips

1 three-ended 80-wire/40-pin IDE UDMA/100 ribbon cable for high speed UDMA IDE devices

1 floppy ribbon cable

2 Fan-041 with heatsink

Two TMR-007

One BIOS/drivers CD
