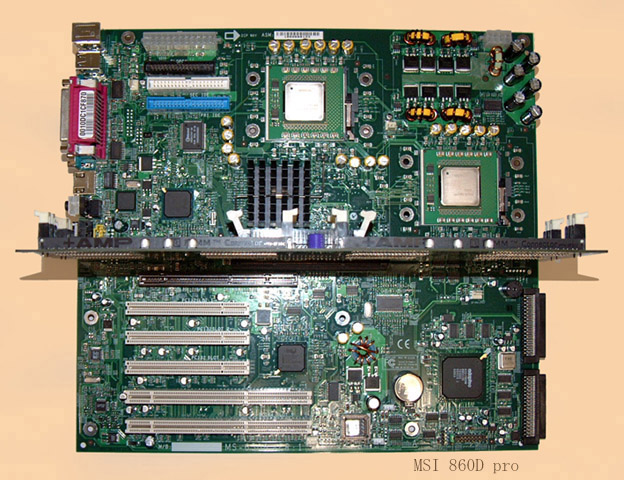

Chipset
Intel? 82860 Memory Controller Hub (MCH)
- Supports a 400MHz system bus.
- Supports dual high performance RDRAM memory channels.
- Adds up to two high performance 64-bit 66MHz PCI segments.
- Provides the latest graphics support through 1.5V AGP 4X technology.
- Intel? 82801BA I/O Controller Hub (ICH2)
- 2-channel Ultra ATA/100 Bus Master IDE controller.
- Dual USB controllers (expanded capabilities for 4 ports).
- I/O APIC.
- SMBus enhancements.
- FWH interface.
- LPC interface.
- AC’97 2.1 interface.
- PCI 2.2 interface.
- Integrated LAN controller.
Intel? 82806AA 64-bit PCI Controller Hub (P64H)
- Supports the 64-bit PCI slots at speeds of either 33MHz or 66MHz.
- Connects directly to the MCH and provides a dedicated path for high
performance I/O.
- Intel? 82803AA RDRAM-based Memory Repeater Hub (MRH-R)
- Integrated on the MS-6942 memory extension card.
- Converts each memory channel into two memory channels, doubling
memory capacity.

Main Memory
The MS-6942 memory extension card supports eight gold-lead sockets for
184-pin RIMM modules.
Supports up to 8GB memory size.

Slots
One AGP (Accelerated Graphics Port) Pro 4x slot.
Two 64-bit, 66/33 MHz PCI bus mastering slots.
Three 32-bit, 33 MHz PCI bus mastering slots.
One MECC slot for connection to the MS-6942 memory extension card.

On-Board IDE
An IDE controller on the ICH2 chipset provides IDE HDD/CD-ROM with

PIO, Bus Master and Ultra DMA66/100 operation modes.
Can connect up to four IDE devices.

On-Board Peripherals
On-Board Peripherals include:
- 1 floppy port supports 2 FDDs with 360K, 720K, 1.2M, 1.44M and
2.88Mbytes.
- 2 serial ports (COM A + COM B)
- 1 parallel port supports SPP/EPP/ECP mode
- 2 USB ports
- 1 LAN RJ45 jack
- 2 SCSI connectors
- 3 audio connectors

Network
Intel? 82550 LAN Controller
- Integrated IEEE802.3 10-BaseT & 100-BaseTX PHY.
- Wake-On-LAN supported.

Adaptec Ultra-160 SCSI
Integrated Adaptec AIC-7899W Ultra-160 SCSI controller.
Supports dual channels.

BIOS
The mainboard BIOS provides “Plug & Play” BIOS which detects the
peripheral
devices and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function
which records your mainboard specifications.

Dimension
E-ATX Form Factor: 33.0cm x 30.4cm

Mounting
8 mounting holes
